S-Zone

4-Input / 4-Zone Stereo Zone Mixer

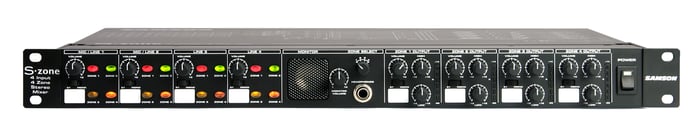

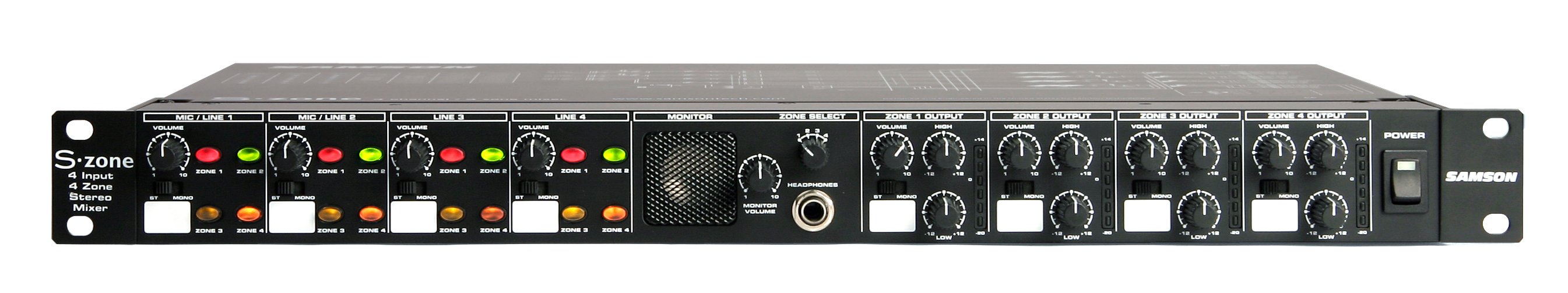

The S-Zone gives system installers all the features they need to control up to four zones of audio in a compact, single rack space unit. It features two balanced mic and four stereo aux/line inputs with a unique front panel control section that allows you to assign any of the four inputs to any of the four zones with the push of a button. The front panel layout also features input and output volume controls, independent 2-band EQ, and a built-in speaker for selectable zone monitoring.

As low as 0% APR available for orders $199 and up. Learn more
Only Left
Preorder Today
Coming Soon
Call to order
We're sorry, but this item is unavailable.
Free -Day Shipping
Get it by when you order within
Get it if you order in  Price:
Great for: Restaurant / Retail, Theater / Production, Fitness

Features/Specs

  • 4-channel/4-zone stereo mixer
  • Two Mic/Stereo Line inputs with ducking
  • Two Stereo CD/Line inputs
  • Onboard Speaker and Headphone monitoring
  • Euroblock output connectors
  • Remote Volume Control

Specifications

Input Impedance Mic600Ω XLR balanced
Input Impedance Line22K Ω
Max Input Level Mic-14 dBV balanced
Max Input Level Line  +24 dBV
Maximum Gain Mic  60 dB
Maximum Gain Line  26 dB
Output Level+17 dBV max.
Output Impedance Balanced200 Ohms
Output Impedance Unbalanced100 Ohms
Max. S/N ratio96 dB
THD<.02%
CMRR:>52 dB (Mic)
Phantom power+15 VDC
Tone ControlsLOW +/- 15 dB  at 100 Hz / HIGH +/- 15 dB  at 10 kHz
Inputs6 PIN Euroblock
Outputs9 PIN Euroblock
Power Consumption5 Watts
Dimensions19" x 7.5" x 1.75" / 482mm x 190mm x 44mm
Weight5.1lb / 2.31kg
