Portable Power
It has two XLR inputs for connecting microphones and one channel for connecting a stereo signal from an MP3 player or other electronic device. There's also a built-in 24-bit digital effects processor to add studio-quality effects to your voice or instruments. For music playback, the XP300 features Bluetooth® wireless connectivity to stream audio from your smartphone, tablet or computer. The mixer delivers a robust output, with 300 watts of total power from the lightweight Class D amplifier section.
An Adventure For All
The XP300 is ideal for education, business and house of worship applications because users with limited PA experience can set it up quickly and efficiently. With Bluetooth® connectivity to wirelessly stream audio from laptops, tablets and smartphones, the XP300 is also perfect for presentations, parties, and karaoke.
Go Wireless
The XP300 includes a USB Wireless port for integrating Samson's XPD USB Digital Wireless Systems (sold separately), now available in handheld, headset, and lavalier configurations.
Flex Your Sound

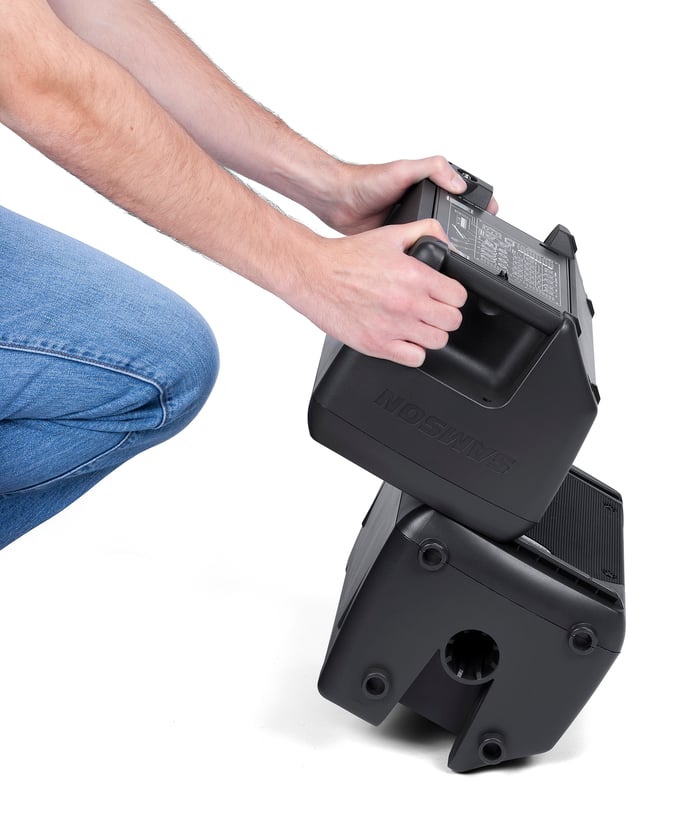

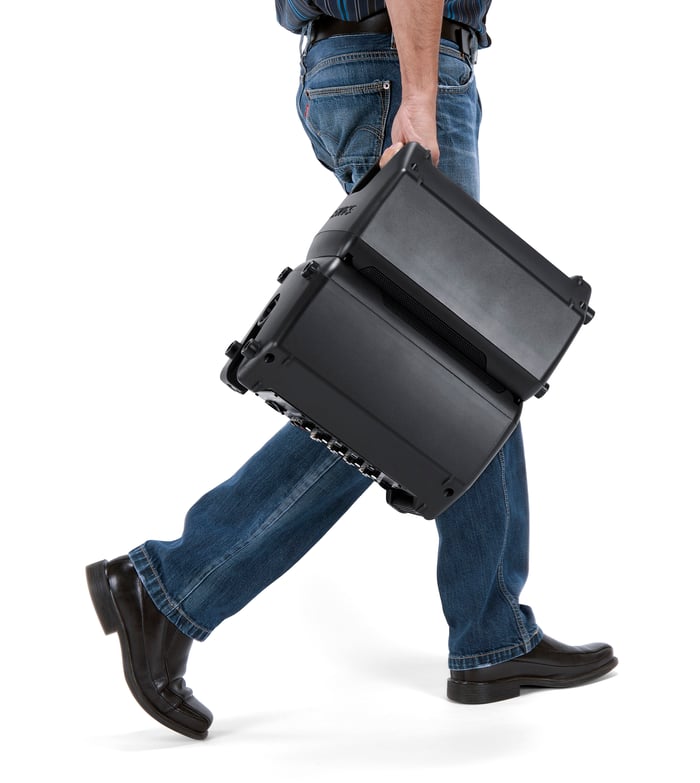

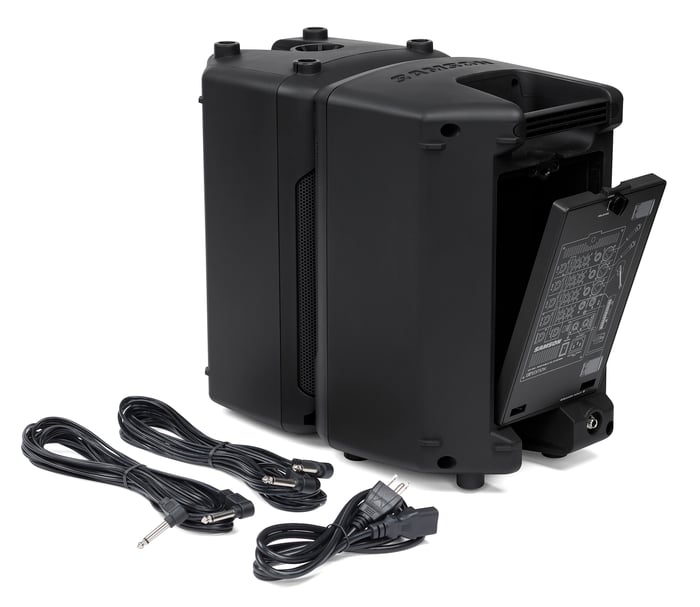

For enhanced portability, the XP300 features a unique slide-and-lock speaker design that allows the system and all its components to be packed and transported as a single unit weighing just under 24 pounds.
Features / Specs
Features
- 300-watt portable PA system
- Ideal for small-sized venues and rooms (audiences of 75–100)
- Packs up into a single portable unit that weighs less than 30lb
- Lightweight Class D amplifier produces 2 x 150 watts of stereo power
- Dual 2-way speakers with 6" woofers and 1" HF drivers
- Bluetooth connectivity to wirelessly stream music

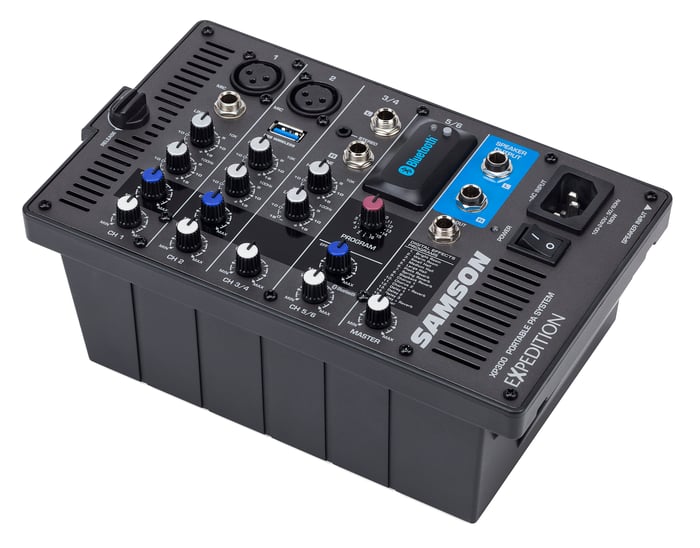

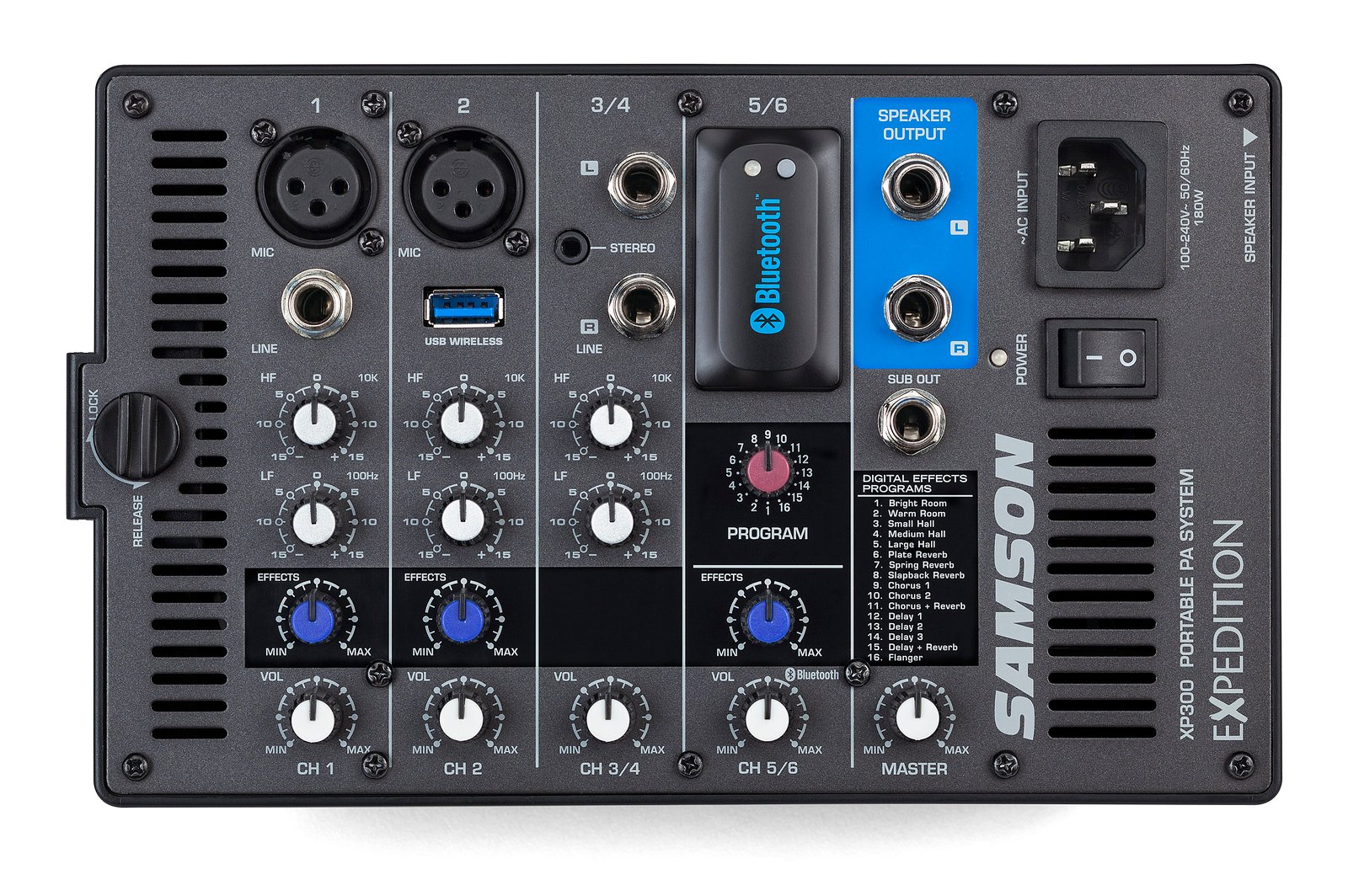

- Removable 6-channel mixer
- Mic/Line input (XLR and 1/4") for microphones and line level devices
- Mic input (XLR and USB Wireless port) for microphones and Samson's XPD USB Digital Wireless Systems (sold separately)
- Stereo channel (1/4" and 1/8") for connecting external devices (MP3 players, keyboards, etc.)
- Bass and treble controls on each channel
- 16 presets of 24-bit digital effects with Send level control
- Phantom power for condenser microphones
- Sub output for active subwoofers
- Durable ABS high-impact plastic construction
- Perforated steel grilles
- 1 3/8" speaker stand mounts
- Tilt-back design for using speakers as floor monitors
- Two 10' speaker cables included
Specifications
| Power | 300W @ 4Ω (150W per channel) Peak, 150W @ 4Ω (75W per channel) Average |
|---|---|
| Frequency Response | 20Hz–20kHz |
| Speakers | 6" woofer, 1" HF driver |
| Input Channels | 6 (2 mono, 1 stereo, Bluetooth) |
| Inputs | XLR, 1 ⁄4", 3.5mm stereo, USB Wireless |
| Input Channel EQ (High/Low) | 10kHz/100Hz shelving ±15dB |
| Effects | 16 preset, 24-bit DSP |
| Outputs | 1/4" Sub Out, 2 x 1 ⁄4" Speaker |
| Maximum Output Level | +22dBu (Sub Out) @ 10KΩ |
| Phantom Power | +15V DC, fixed phantom voltage |
| Bluetooth | 3.0, A2DP |
| Included Accessories | 2 x 10' 1/4" Speaker Cables |
| Product Dimensions | 14” x 15.5” x 8.5” / 354mm x 395mm x 218mm |
| Product Weight | 22.6lb / 10.3kg |
See the Expedition Series
Expedition Portable PA Systems
| Feature | Expedition XP300 - | Expedition XP800 - | Expedition XP1000 - |
|---|---|---|---|
| Audience Size | 250–500 people | 300–800 people | 500–1000 people |
| Output Power | 300 watts (2 x 150 Stereo) | 800 watts (2 x 400 Stereo) | 1000 watts (2 x 500 Stereo) |
| Woofer Size | 2 x 6" | 2 x 8" | 2 x 10" |
| HF Driver Size | 2 x 1" | 2 x 1" | 2 x 1" |
| Number of Channels | 6 (2 Mic/Line, 1 Stereo Line) | 8 | 10 |
| Mic Inputs | XLR | XLR, 1/4" | XLR, 1/4" |
| Line Inputs | 1/4", 1/8" (3.5mm) | 1/4", RCA, 1/8" (3.5mm) | 1/4", RCA, 1/8" (3.5mm) |
| Channel EQ | Bass & Treble | Bass & Treble | Bass & Treble |
| Line Outputs | 1/4" Sub Out | Stereo 1/4" Monitor Out, | Stereo 1/4" Monitor Out, |
| 1/4" Sub Out | Stereo RCA Rec Out | ||
| Master EQ | – | Music / Speech Switch | Music / Speech Switch |
| Bluetooth | Yes | Yes | Yes |
| USB Wireless Port | Yes | Yes | Yes |
| Effects | 16 Digital Effects | 16 Digital Effects | 16 Digital Effects |
| Phantom Power | +24V DC | +15V DC | +15V DC |
| Included Cables | 2 x 10' Speaker | 2 x 25' Speaker | 2 x 25' Speaker |
| Dimensions | 14" x 15.5" x 8.5" /354 x 395 x 218mm | 20.1" x 10.6" x 19" / 510 x 270 x 485mm | 22.7" x 11.9" x 22" / 577 x 301 x 560mm |
| Weight | 24lb | 42lb | 53lb |
