Highlights
Easy Addition
The XPD2 handheld system combines micro-receiver technology, intuitive design, and incredible audio quality to make integrating wireless microphones into your audio production extremely easy and affordable.
More Ways To Connect

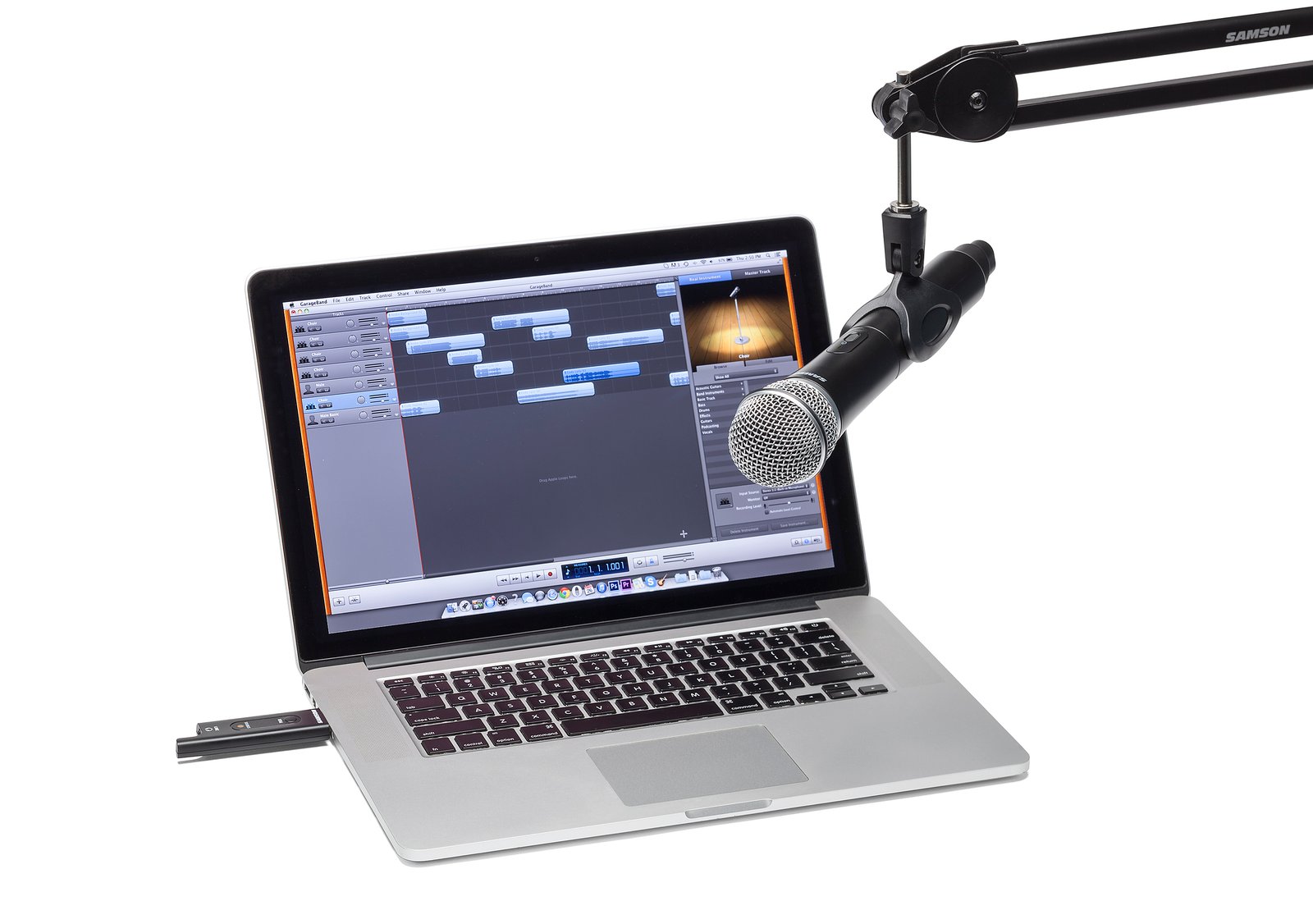

The RXD2 USB stick receiver connects directly to Mac or PC computers, or to any Samson Expedition Series Portable PA system that has a USB wireless port. An added feature from the previous generation system, the 1/8" (3.5mm) output allows for headphone monitoring, or the XPD2 handheld can be used with any device that has an analog line input, including smartphones and other mobile devices.
To connect to an iOS device, Apple's Lightning to USB Camera Adapter is required. To connect to an Android device, a host OTG adapter is required.
High-Quality Digital Sound
XPD2 Wireless delivers its high-quality audio through digital transmission. This type of wireless technology allows the HXD1 handheld transmitter to send an uncompressed signal to the receiver. The result is a higher signal-to-noise ratio compared to a traditional wireless system, and performance that sounds as good as a wired microphone.
Even More Ways to Connect

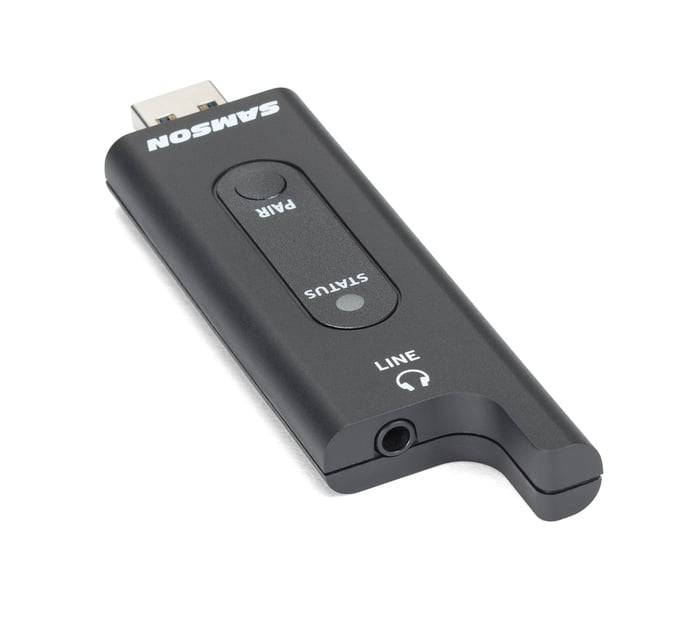

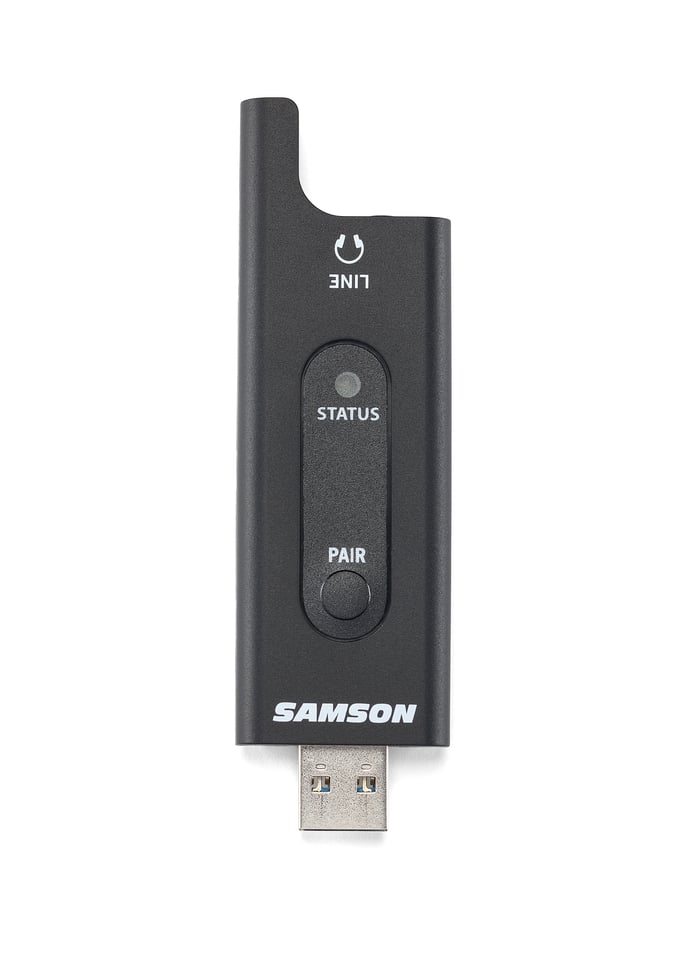

A streamlined setup is essential to empower any active performer or presenter. The RXD2 USB key receiver easily connects to any Samson Expedition Series portable PA system or mixer with a USB wireless port. The RXD2 has a 1/8" (3.5mm) analog output that can be used with headphones or to connect to other devices with an analog input. A USB-A to USB-C adapter is also included for use with other compatible devices*.
*iOS devices with Lightning connectors require Apple's Lightning to USB Camera Adapter.
USB Digital Wireless

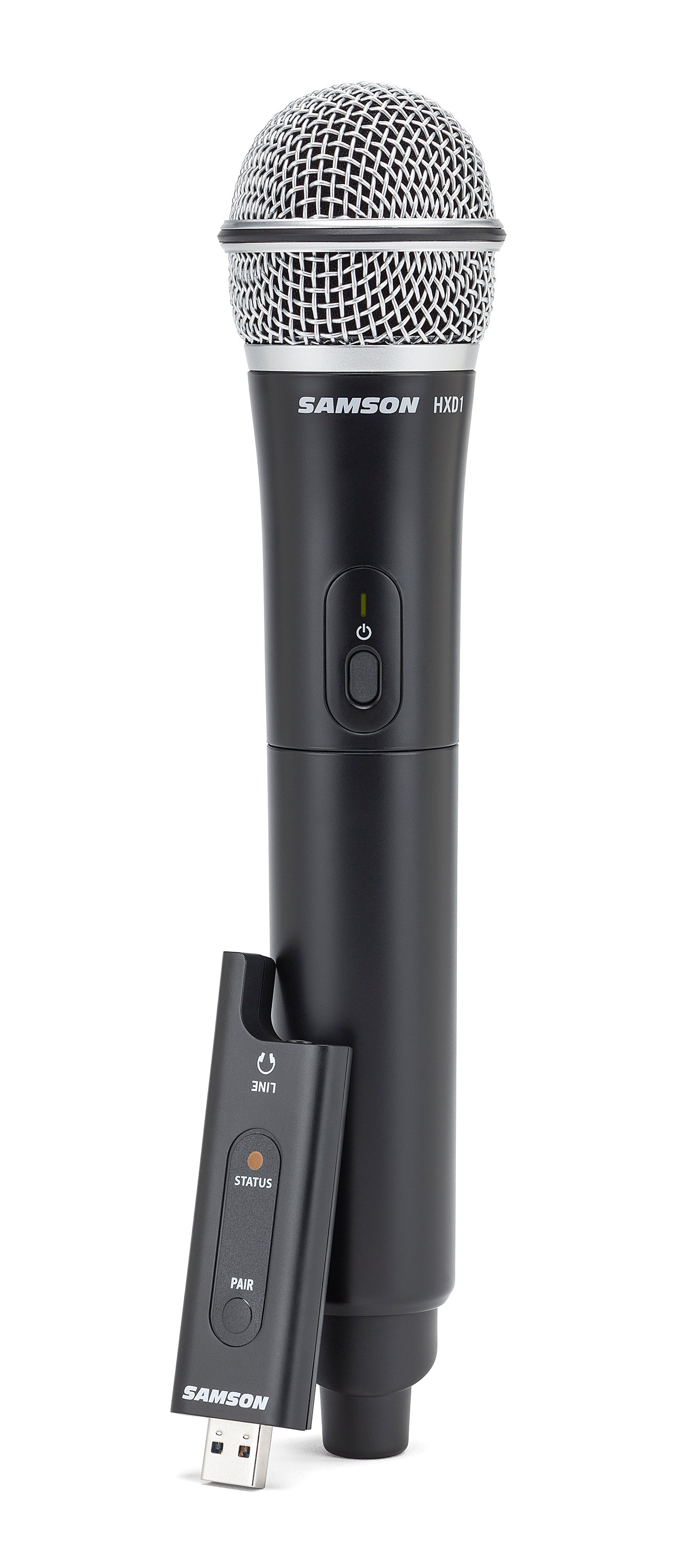

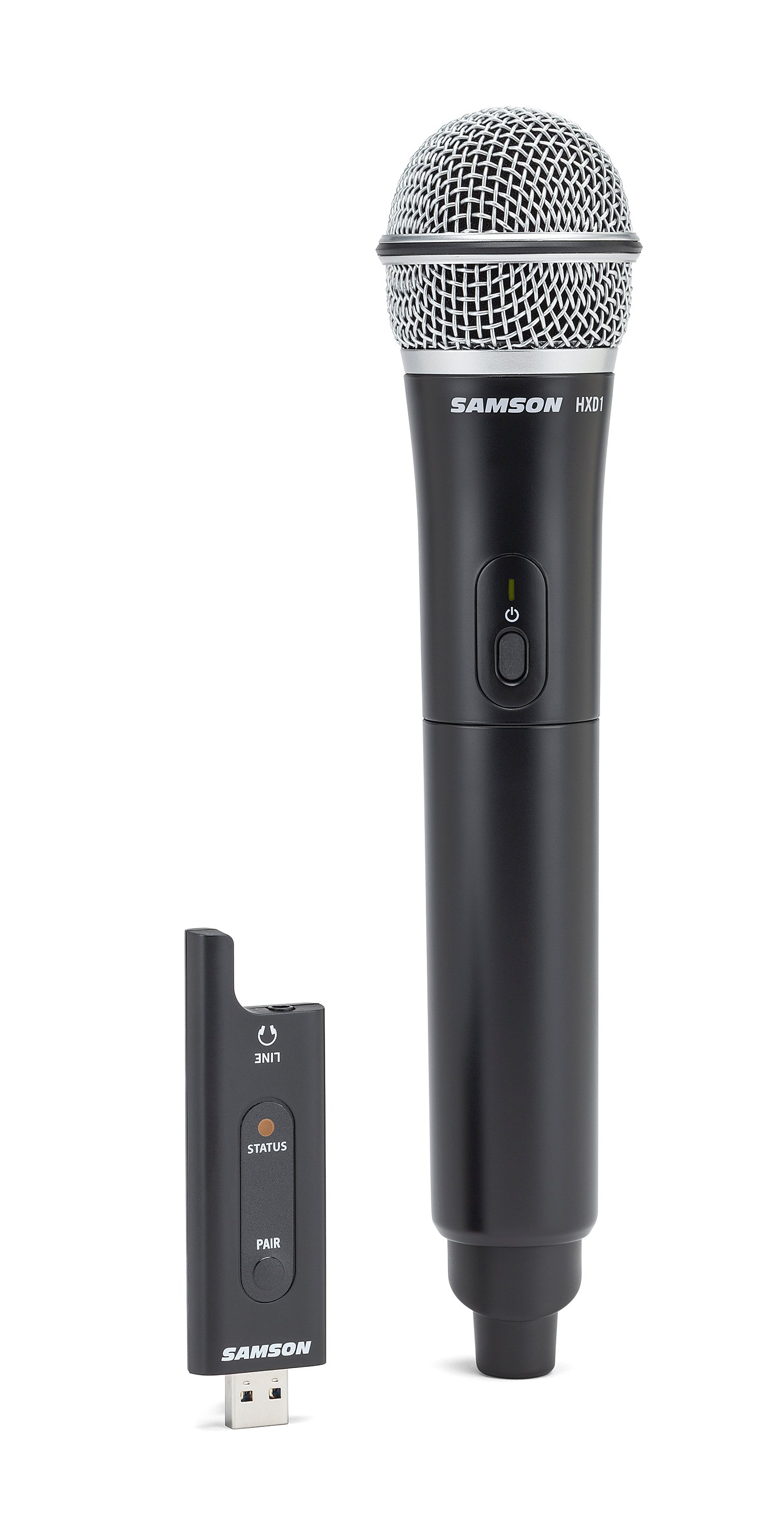

The XPD2 is a wireless microphone solution for content creation, digital communication, and live sound reinforcement. Offering easy setup and professional full-range audio, the XPD2 features a uniquely designed USB stick receiver that connects to computers, smartphones, and XPD Wireless-enabled Samson portable PA systems.
Features / Specs
- 2.4GHz USB digital wireless system
- Ideal for broadcasting, live streaming, presentations and more
- Plug-and-play operation with Mac and Windows
- Works with iPad via Apple's Lightning to USB Camera Adapter
- Works with Android devices via a host OTG adapter
- RXD2 USB stick receiver
- Receiver features a 1/8" (3.5mm) headphone/monitor output

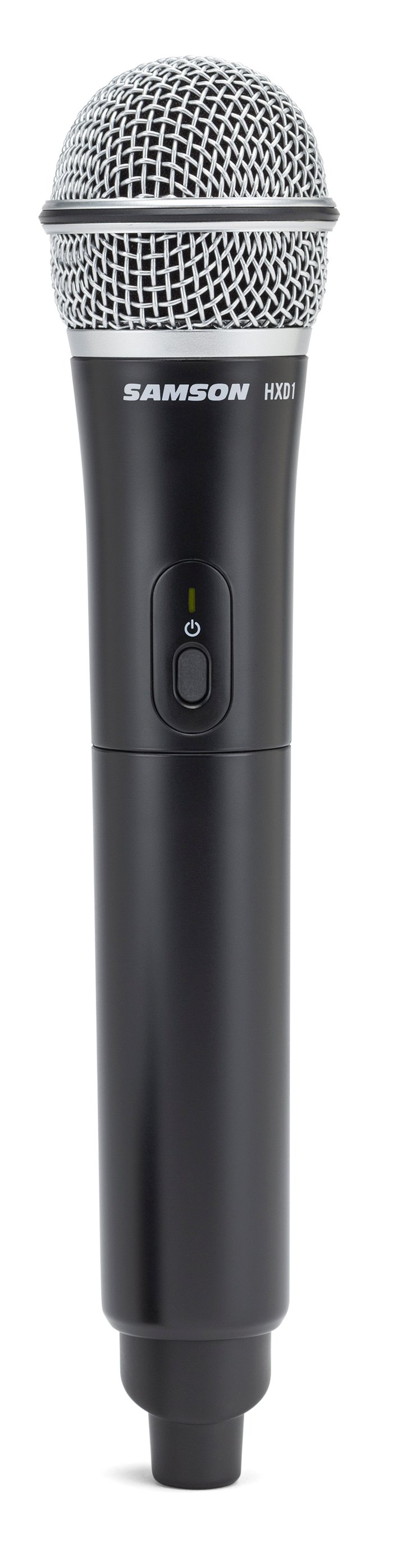

- HXD1 handheld microphone transmitter with Samson Q6 Dynamic Microphone element
- Transmitter offers 20 hours of battery life using two AA batteries (not included)
- 100' operating range (line-of-sight, environment dependent)
- 1-touch pairing, adjustable Volume controls on transmitter
- Compatible with Samson Expedition Series Portable PAs that feature USB Wireless ports
- Includes mic clip and USB extension cable
Specifications
| Simultaneous Systems | 2 |
|---|---|
| Working Range | 100’ line of sight |
| Working Frequency | 2.404~2.476 GHz |
| Modulation type | GFSK |
| Audio Frequency Response | 20 Hz – 17 kHz (-1 dB) |
| T.H.D | <0.1% (at 1 kHz, -10 dBu) |
| Signal to Noise | >85 dB |
| Microphone Element | Q6 Dynamic |
|---|---|
| RF Power | <10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 20 hours |
| Audio Sample Rate | 32 kHz |
| Dimensions | 10.2” x ø2.1” / 260 mm x ø54 mm |
| Weight | 0.5 lb / 218 g |
| Max. Analog Audio Output Level | 9 dBu |
|---|---|
| Headphone Output | 22 mW into 16 Ω or 32 Ω |
| Operating Voltage | 5V DC |
| Dimensions | 3.5” x 0.9” x .31” / 89mm x 23mm x 8mm |
| Weight | 0.35oz / 10g |
More XPD Digital Wireless
Compare Handheld Wireless Systems
| Feature | XPD2 Handheld - | XPDm Handheld - | Concert 88x Handheld - | Concert 99 Handheld - |
|---|---|---|---|---|
| Type | 2.4GHz Digital | 2.4GHz Digital | UHF | UHF |
| Frequencies | n/a | n/a | 100 | 80 |
| Compatible Systems per band | 2 | 2 | 8 | 8 |
| Mic Capsule | Q6 Dynamic | Q6 Dynamic | Q7 Dynamic | Q8 Dynamic |
| Transmitter Battery | 2xAA / 20 hours | 2xAA / 20 hours | 2xAA / 8 hours | 2xAA / 8 hours |
| Receiver Type | USB Stick | Tabletop | Half-rack | Half-rack |
| Rack-mountable | No | No | Yes - Rack kit included | Yes - Rack kit included |
| Receiver Output Connections | USB, 1/8" | XLR, 1/4", 1/8" | XLR, 1/4" | XLR, 1/4" |
| Antenna Distribution Capable | No | No | No | Yes |
