Highlights
VHF Operation
The Stage 200 operates on the reliable VHF frequency spectrum, which has become much less crowded with the advent of digital television. VHF operation also gives both microphone transmitters an exceptional battery life of up to 12 hours on two AA batteries (not included).
Simple Setup
Samson has been at the forefront of wireless innovation, always striving to make it easier for performers everywhere to cut the chord. The Stage 200's fixed frequency operation allows for instant setup. Simply plug in the receiver and turn on your transmitters to experience quality wireless performance. A 200' operating range provides ample freedom for any presenter or performer duo.
Versatile Performance

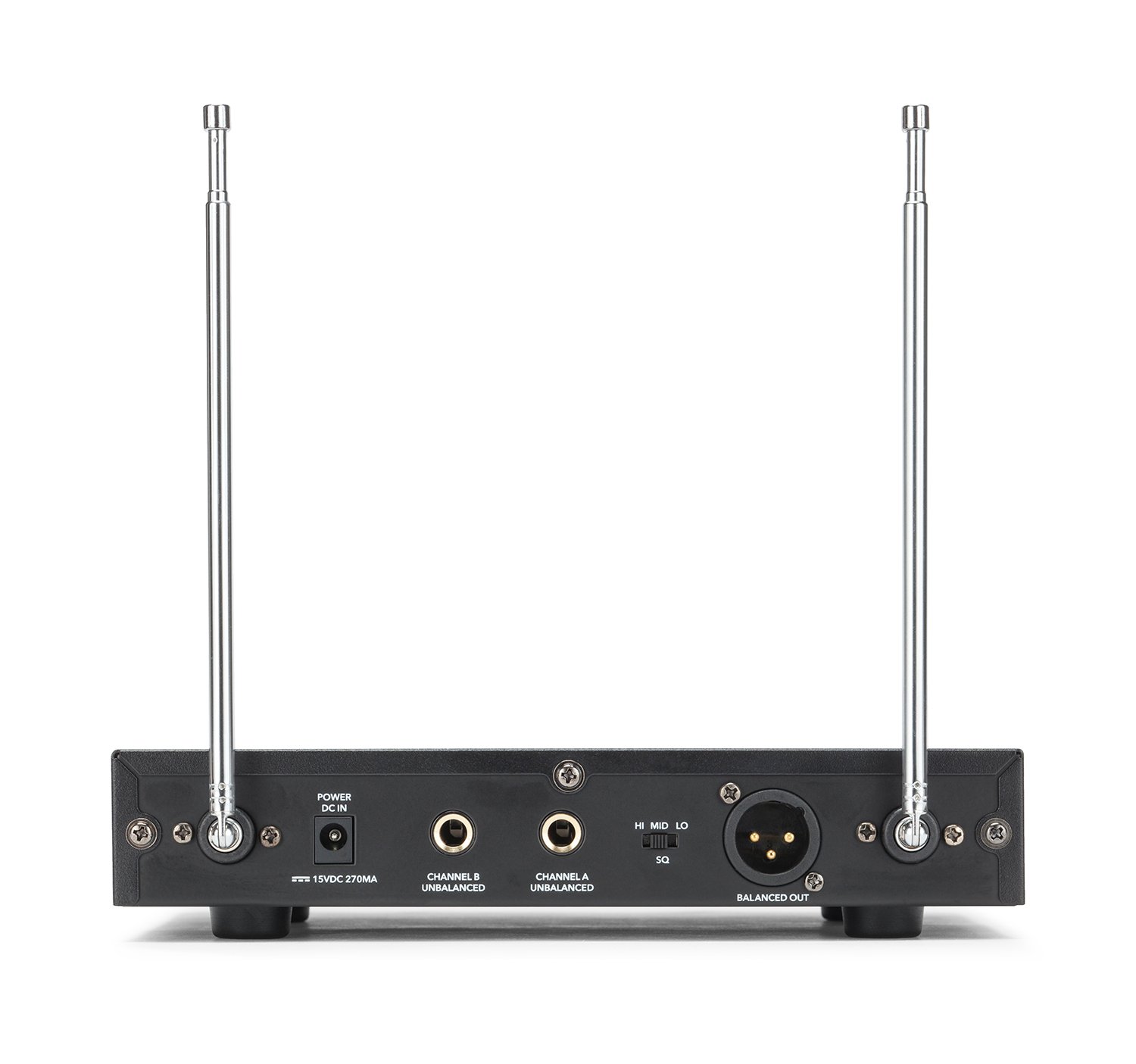

Featuring the rugged metal SR200 receiver, the Stage 200 is designed for maximum durability and versatility. The rear panel features two 1/4" outputs and a balanced XLR output for connection to a dedicated mixer or powered PA speaker. The 1/4" outputs send each channel separately, while the XLR sends a mix of both. Front panel volume controls on each channel let you find the perfect blend between two performers.
Features / Specs

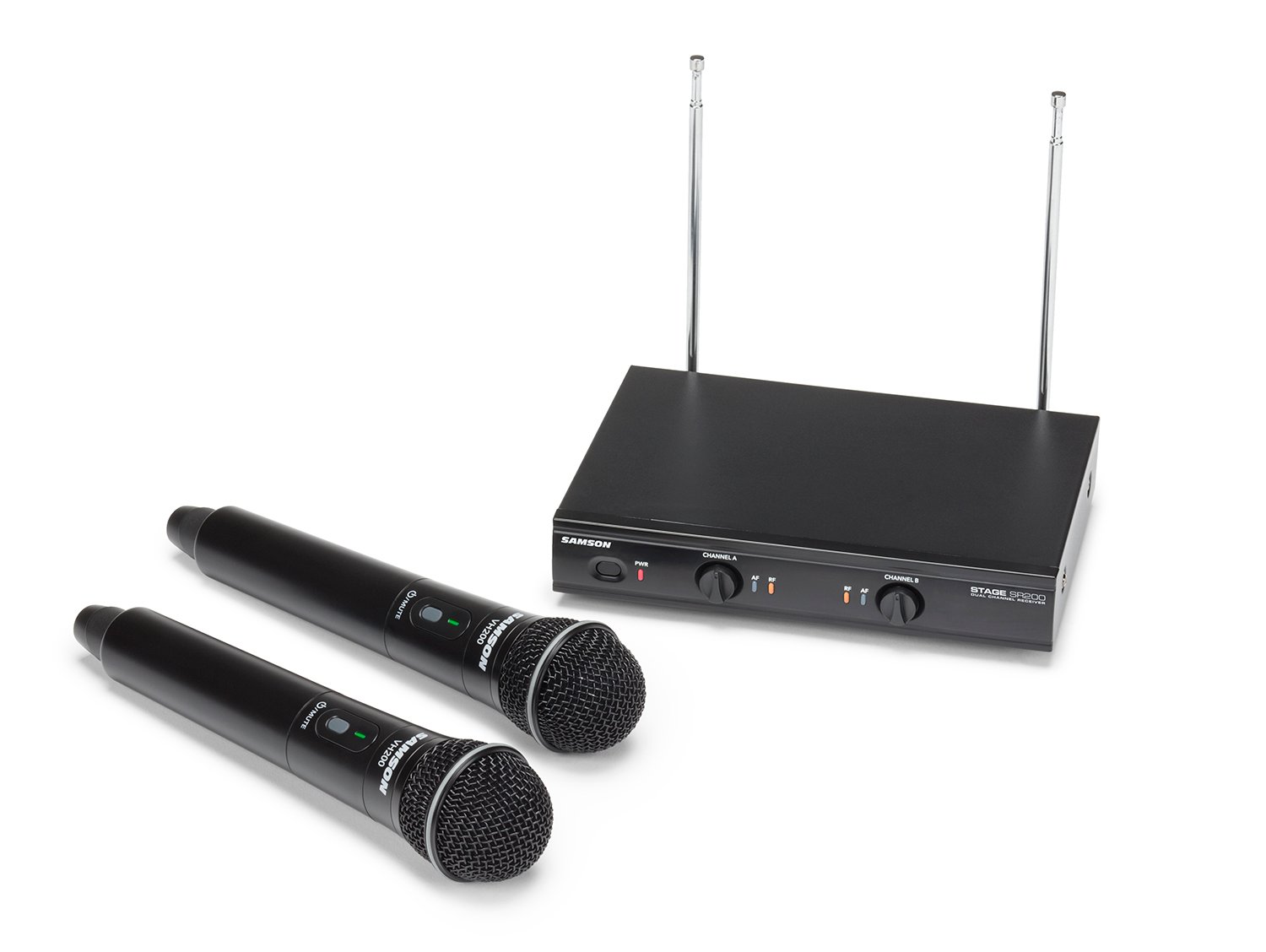

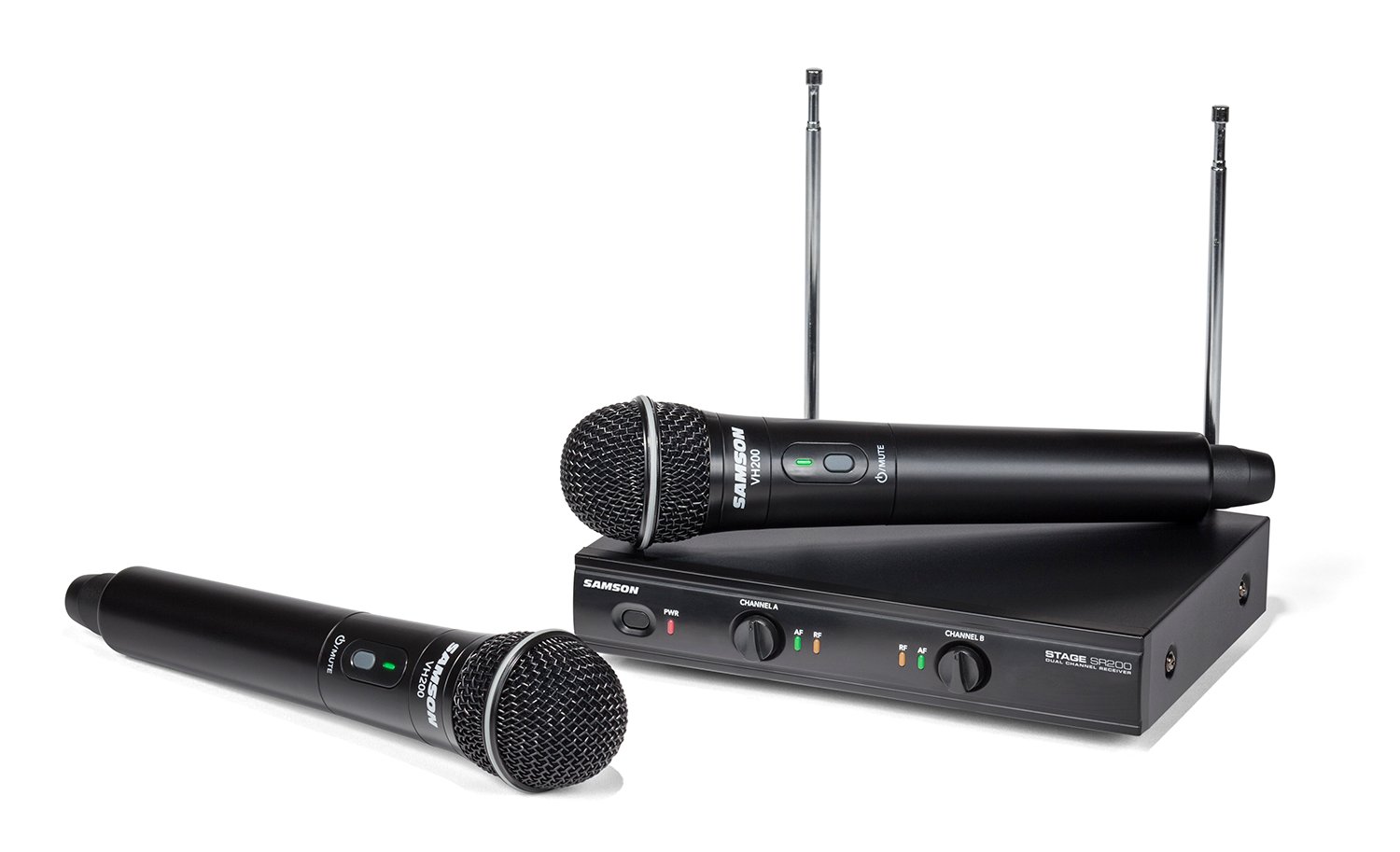

Stage 200 Wireless System
- Dual-channel VHF wireless system
- Fixed frequency design for instant setup
- Four frequency bands available to support up to eight performers simultaneously (region dependent)
- AC adapter included

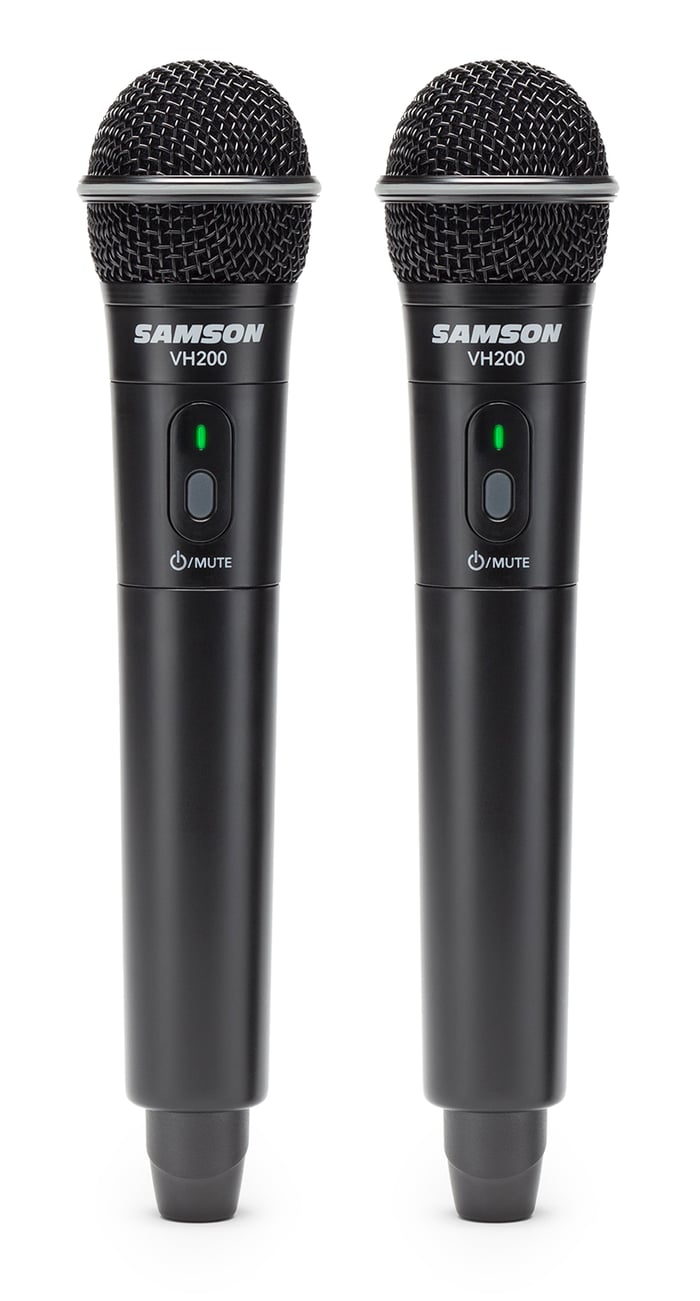

VH200 Handheld Transmitters
- Two Q6 Dynamic Microphone capsules
- Each offers up to 12 hours of battery life using two AA batteries (not included)
- 200' operating range (line-of-sight)

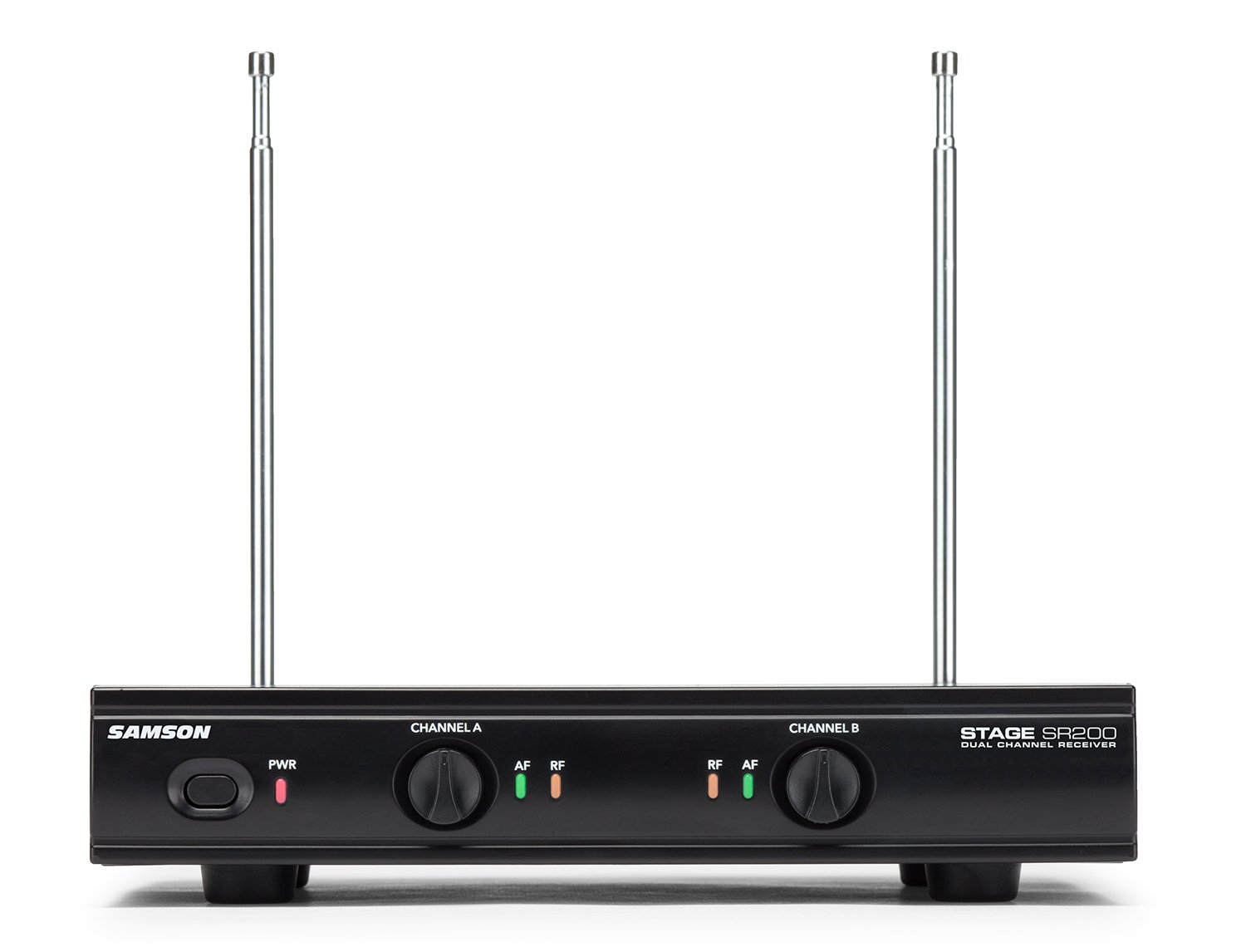

SR200 Wireless Receiver
- Rugged metal chassis
- Dedicated Volume controls for each channel
- 1/4" outputs for sending each channel to mixer
- Balanced XLR Mix output for direct connection to PA
Specifications
| Operating Frequency | VHF 182.1MHz to 212.725MHz |
|---|---|
| Number of Channels | Fixed channel |
| Frequency Stability | ±0.005% |
| Modulation Mode | FM |
| Maximum Deviation | ±30 kHz |
| Operating Range | 50 meter |
| Frequency Response | 80 Hz to 15kHz |
| RF Power Output | 25mW |
|---|---|
| Microphone Element | Dynamic |
| Typical Battery Life | 12 hours |
| Current Consumption | 100 mA typical |
| Dimensions | ø2.2” x 10” / ø55mm x 255mm |
| Net Weight | 0.49lb / 0.22kg |
| Image Rejection | 35 dB |
|---|---|
| Dynamic Range | 100 dB |
| Maximum Output | 1.37V |
| Sensitivity | -100dBm@30dB SINAD |
| Output Connectors | Two 6.3mm unbalanced, One XLR balanced |
| Audio Output Levels | -12dB |
| Power Supply | 100-240V ~50/60Hz, 0.4A;Output: DC 15V,800mA |
| Dimensions | 8.25” x 5.7” x 1.4” / 210mm x 145mm x 36mm |
| Net Weight | 1.32lb / 0.6kg |
More Multi-Channel Wireless
Compare Multi-Channel Handheld Wireless Systems
| Feature | Stage 200 - | Stage 212 - | XPD2m Handheld - | Concert 288 Handheld - | Concert 288m Handheld - | Stage 412 - |
|---|---|---|---|---|---|---|
| Type | VHF | VHF | 2.4GHz Digital | UHF | UHF | VHF |
| Dual / Quad | Dual | Dual | Dual | Dual | Dual | Quad |
| Frequencies per Channel | 1 | 12 | n/a | 16 | 100 | 6 |
| Compatible Systems | 4 | 3 | 1 | 8 per band | 4 per band | 3 |
| Transmitter Battery | 2xAA / 12 hours | 2xAA / 10 hours | 2xAA / 20 hours | 2xAA / 8 hours | 2xAA / 8 hours | 2xAA / 10 hours |
| Receiver Type | Tabletop | Tabletop | Tabletop | Half-rack | Tabletop | Tabletop |
| Rack-mountable | No | No | No | Yes - Rack kit included | No | No |
| Receiver Output Connections | Dual 1/4", Mixed XLR | Dual 1/4", Mixed XLR | Dual XLR, Mixed 1/4", Mixed 1/8" | Dual XLR, Mixed 1/4" | Dual XLR, Mixed 1/4", Mixed 1/8" | 4x 1/4", 3x Mixed XLR |
Downloads & Manuals
Additional Materials
Consumer Alert: Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
