Highlights
Digital Wireless
The XPD2m Digital Wireless System delivers high-quality audio using digital transmission at 2.4 GHz, with results that sound as good as a traditional wired microphone. Set up is extremely easy and you can start performing with one-touch pairing that syncs the transmitter and receiver channel. Simply connect the RXD2M to your mixer or sound system, set the levels and enjoy wireless audio that sounds as good as a wired microphone.
Double Time

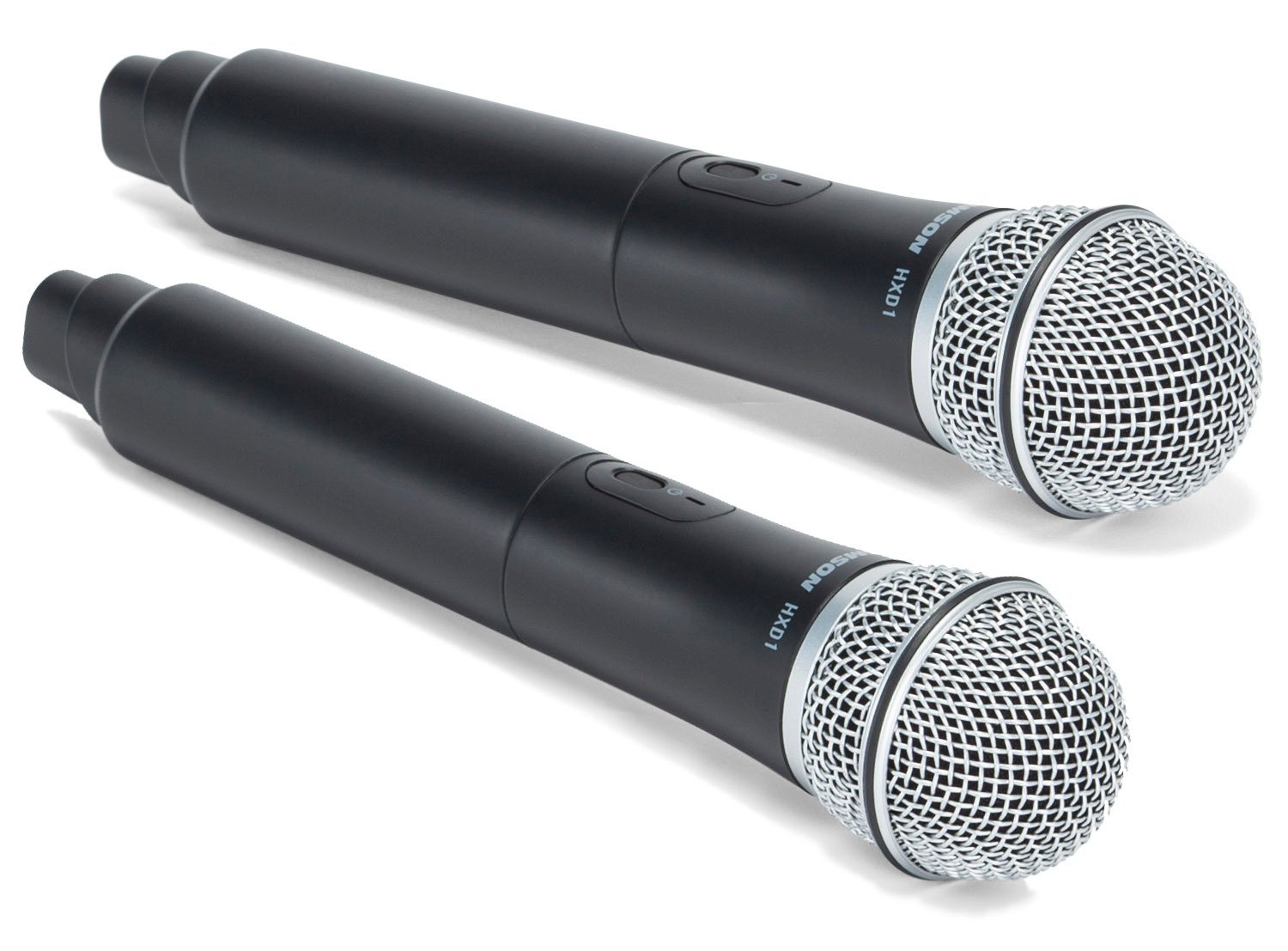

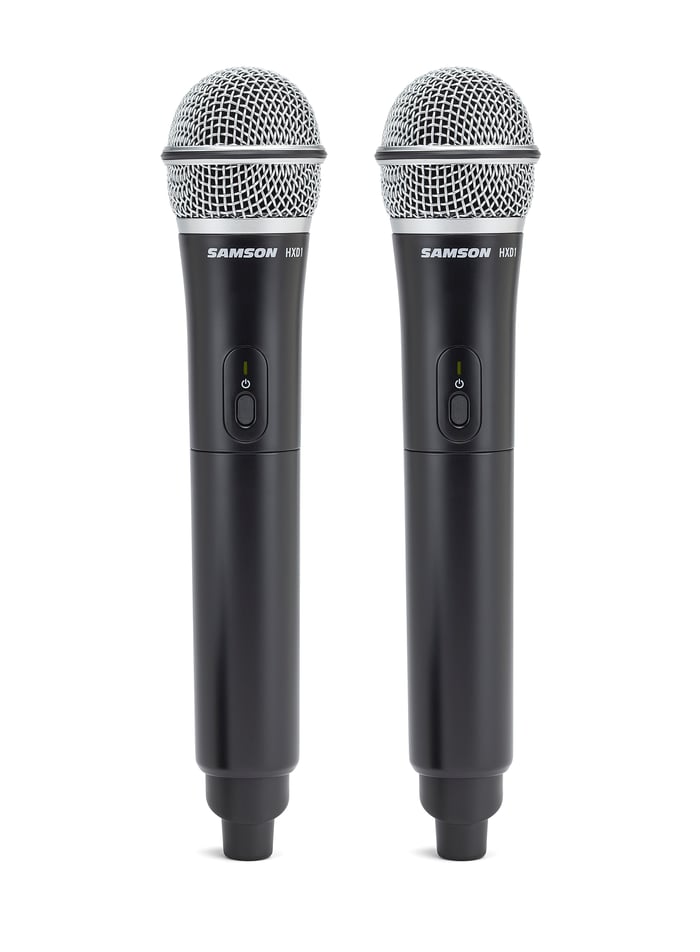

The HXD1 handheld transmitter provides completely wireless performance and captures vocals with absolute clarity. With 20 hours of continuous use from two AA batteries and 100' of wireless operation, the HXD1 delivers reliable performance in any application. A Q6 dynamic microphone element delivers high-quality sound for singers or presenters.
Easy Integration

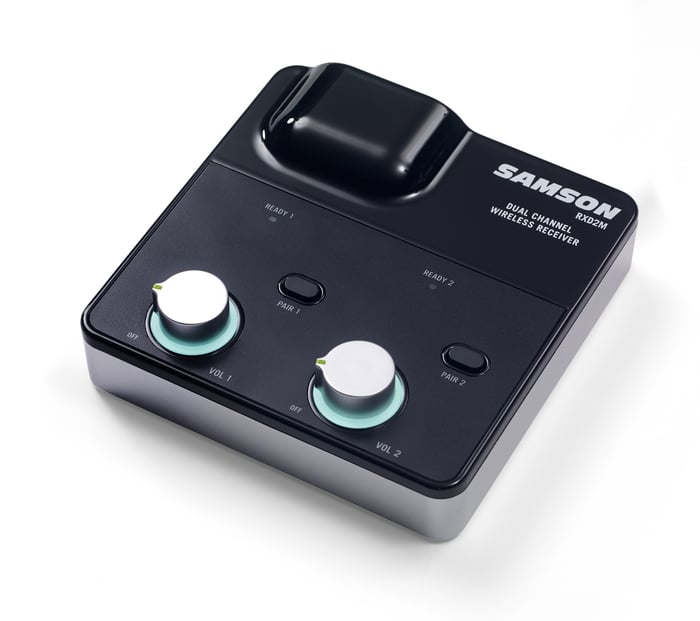

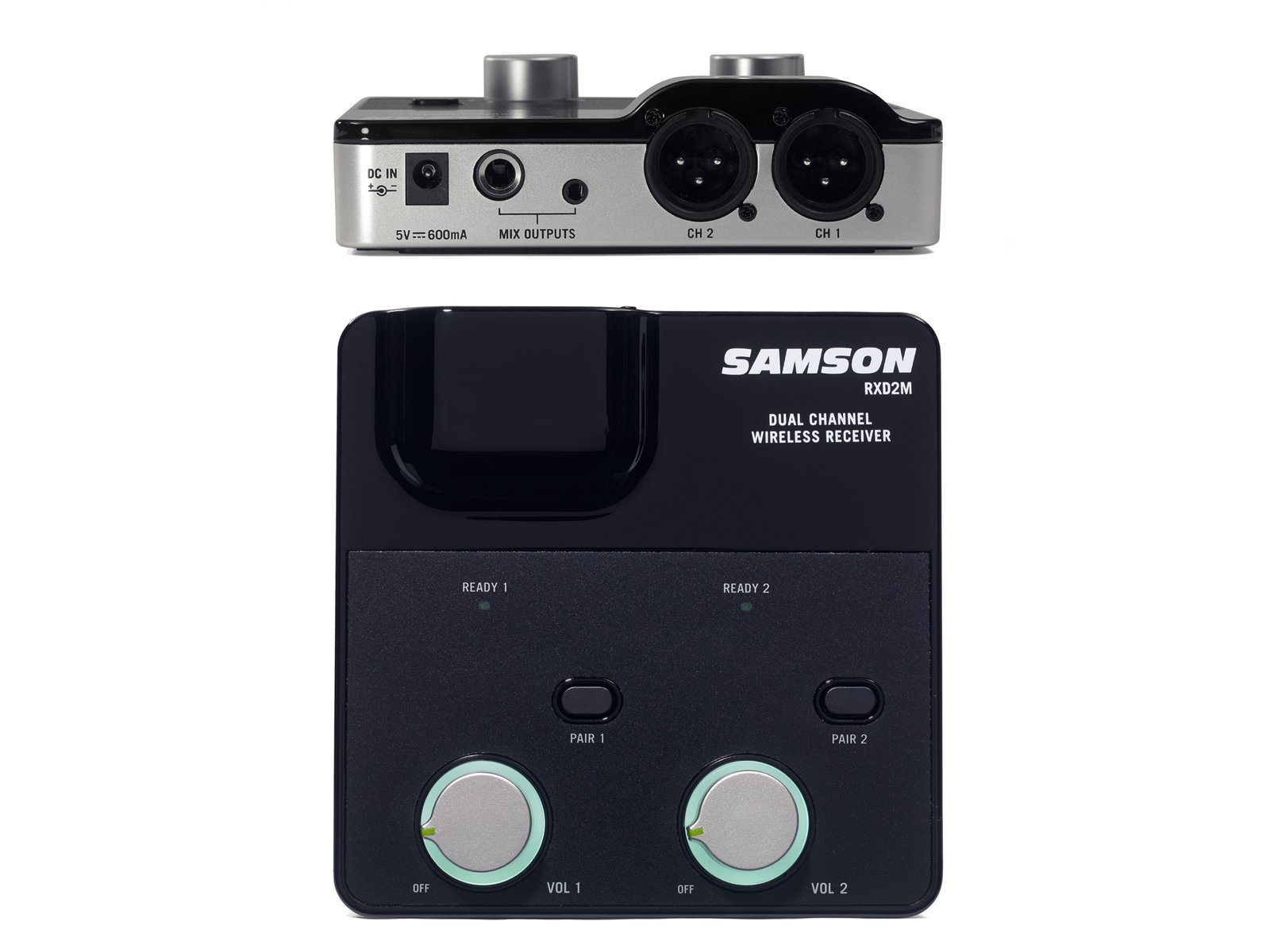

The RXD2m two-channel desktop receiver easily connects to any audio system. Two balanced XLR outputs allow each wireless channel to be routed independently, or send a mix of both channels via the 1/4" and 1/8" mix outputs.
Features / Specs

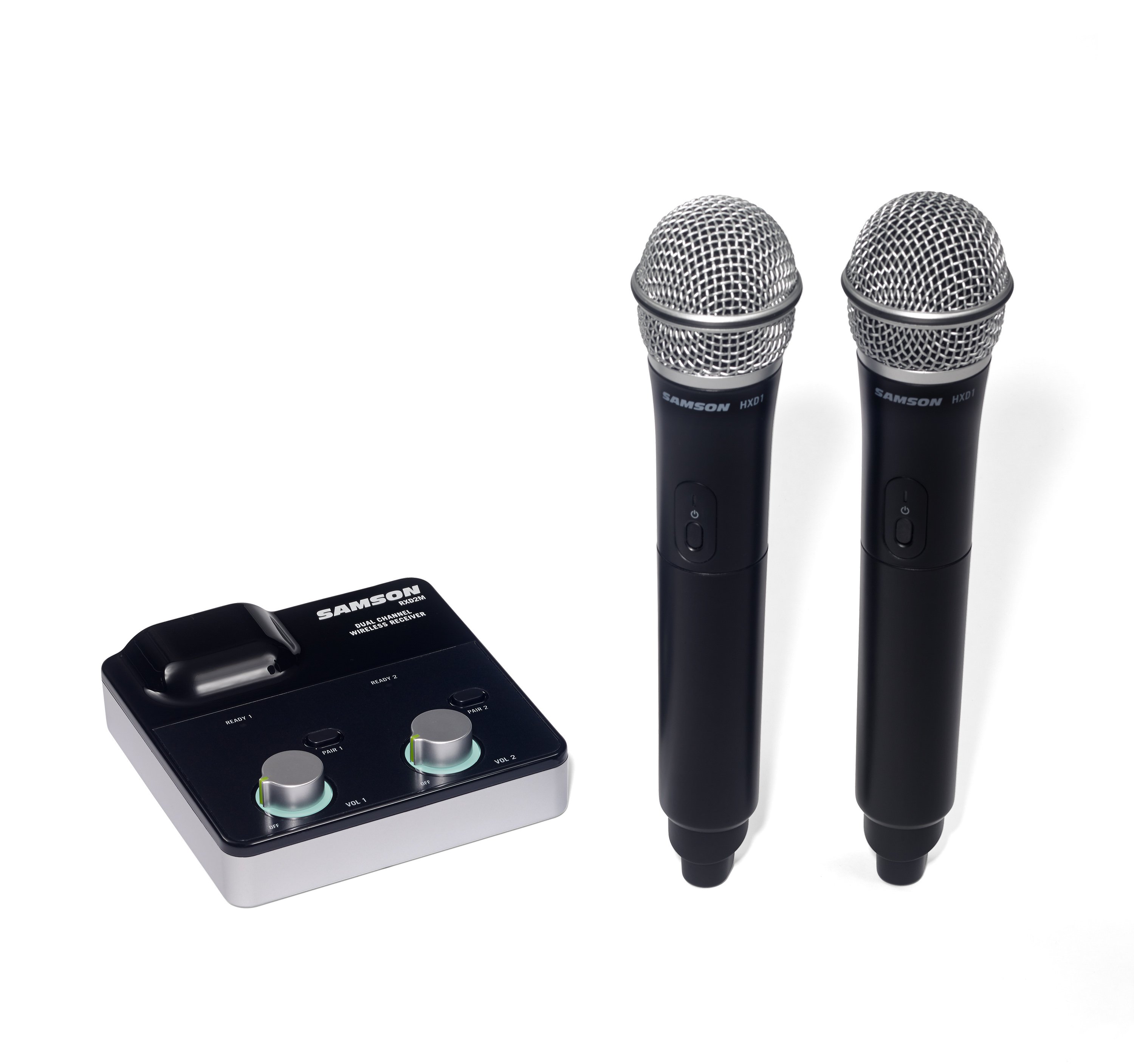

XPD2m Handheld System
- High performance dual channel digital wireless system
- Operates on 2.4GHz License-free frequency
- 100’ (30m) line-of-sight operating range
HXD1 Handheld Transmitters
- Q6 Dynamic Microphone capsule
- Offers up to 20 hours of battery life using two AA batteries

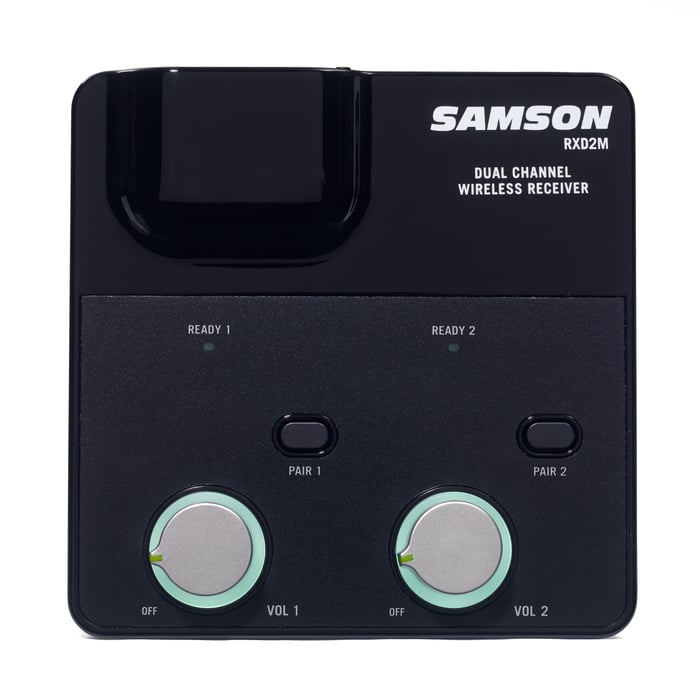

RXD2M Tabletop Receiver

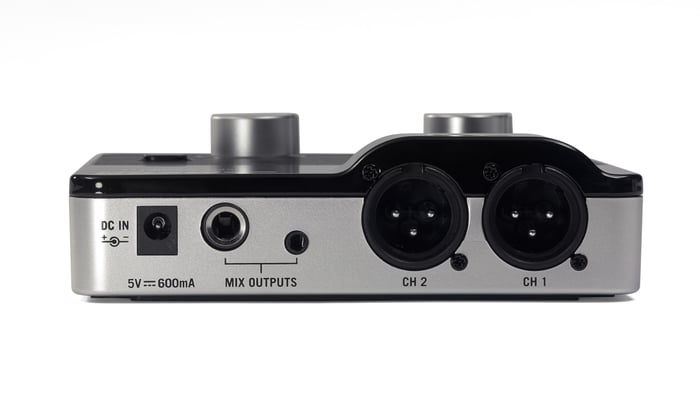

- Dual balanced XLR outputs for routing signals to two separate mixer channels
- 1/4" and 1/8" unbalanced mix outputs combine signals to one output channel
- Simple one-touch pairing button
- Separate Volume controls for each channel
Specifications
| Operating Range | 100’ (30m) line of sight |
|---|---|
| Audio Frequency Response | 24Hz - 18kHz (+0/-3dB) |
| T.H.D.+N (Overall) | <0.1%, +4dBu, 22kHz BW |
| Dynamic Range XLR | 81.9 dB re - 1.1 dBu |
| Dynamic Range Unbalanced | 81.3 dB re +5.3 dBu |
| Modulation Type | GFSK |
| Oscillation Type | PLL |
| Signal to Noise | 90dB,re +4dBu, 22kHz BW |
| Operating Frequency | 2.404~2.476+GHz |
| Frequency Stability | +/- 0.005% |
| Max channels per system | 2 |
| Max simultaneous systems | 1 |
| Microphone Element | Q6 Dynamic |
|---|---|
| RF Power | <10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 20 hours |
| Audio Sample Rate | 32 kHz |
| Dimensions | 10.2” x ø2.1” / 260 mm x ø54 mm |
| Weight | 0.5 lb / 218 g |
| Audio Output Level 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) | +4 dBu, 1 kHz, <0.6% THD+N |
|---|---|
| Audio Output Level XLR jack (balanced) | +4 dBu, 1 kHz, <0.6% THD+N |
| Audio Output Impedance 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) | 110 ohms @ 1kHz |
| Audio Output Impedance XLR output jack (balanced) | 2.4Kohms @ 1kHz |
| RF Sensitivity | -78dBm/20dB SINAD |
| Image Rejection | >50dB |
| Operating Voltage | 5VDC 500mA |
| Dimensions | 4.3” x 3.7” x 1.5” / 110mm x 95mm x 39mm |
| Weight | 0.33lb / 152g |
More XPD Digital Wireless
Compare Multi-Channel Handheld Wireless Systems
| Feature | Stage 200 - | Stage 212 - | XPD2m Handheld - | Concert 288 Handheld - | Concert 288m Handheld - | Stage 412 - |
|---|---|---|---|---|---|---|
| Type | VHF | VHF | 2.4GHz Digital | UHF | UHF | VHF |
| Dual / Quad | Dual | Dual | Dual | Dual | Dual | Quad |
| Frequencies per Channel | 1 | 12 | n/a | 16 | 100 | 6 |
| Compatible Systems | 4 | 3 | 1 | 8 per band | 4 per band | 3 |
| Transmitter Battery | 2xAA / 12 hours | 2xAA / 10 hours | 2xAA / 20 hours | 2xAA / 8 hours | 2xAA / 8 hours | 2xAA / 10 hours |
| Receiver Type | Tabletop | Tabletop | Tabletop | Half-rack | Tabletop | Tabletop |
| Rack-mountable | No | No | No | Yes - Rack kit included | No | No |
| Receiver Output Connections | Dual 1/4", Mixed XLR | Dual 1/4", Mixed XLR | Dual XLR, Mixed 1/4", Mixed 1/8" | Dual XLR, Mixed 1/4" | Dual XLR, Mixed 1/4", Mixed 1/8" | 4x 1/4", 3x Mixed XLR |
